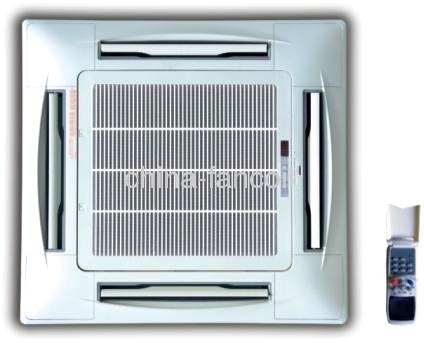

4 way ceiling concealed cassette type fan coil units-1200CFM from China manufacturer - Taizhou MECO Refrigeration Equipment Co.,Ltd

Place of Origin:

Zhejiang, China (Mainland)

Product Detail

Model No.: MFP-204KM-(Q)EE3

Certification: CE

Cooling/Heating: Cooling/Heating

Type: Central Air Conditioners

Capacity: Others

Brand Name: MECO

Chilled water 4 way cassette type fan coil units
water cassette air conditioner
air volume=200CFM-1200CFM)
drained by water pump height=290mm

Chilled water 4 way cassette type fan coil units

water cassette air conditioner
air volume=200CFM-1200CFM)
drained by water pump height=290mm
multi air flow
remote control

model(2 tube system)				MFP-136KM- (Q)EE3	MFP-170KM-(Q)EE3	MFP-204KM-(Q)EE3	MFP-238KM-(Q)EE3
air volume		H	m3/h	1360	1700	2040	2380
		M		1040	1280	1550	1800
		L		710	860	1050	1280
static pressure			Pa	0	0	0	0
cooling capacity	TH	H	W	7200	9000	10800	12600
	TH		BTU/h	24566	30708	36850	42991
	SH		W	5362	6707	8072	9070
	SH		BTU/h	18295	22884	27542	30947
	TH	M	W	6435	7848	9296	10500
	SH	M	W	4236	5393	6603	7190
	TH	L	W	5604	7223	8534	8900
	SH	L	W	3284	4416	5248	5500
heating capacity	H		W	10800	13500	16200	18900
	M		W	7924	10473	12997	13900
	L		W	5421	6992	8645	9700
noise	H	0Pa	dB(A)	46	48	50	51
power input	H	0Pa	W	134	152	189	228
waterflow volume			m3/h	1.23	1.54	1.85	2.16
water pressure dropping			kPa	29.6	35.4	35.4	40
dimension of pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water drain pipe			mm	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	822822263	822822293
net dimension	panel		L×W×H mm	95095045
net weight	unit		kg	25	28	28	29
net weight	panel		kg	6
