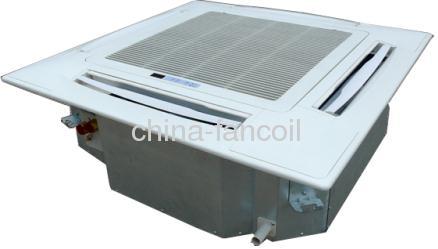

4 way ceiling concealed cassette type fan coil units-300CFM from China manufacturer - Taizhou MECO Refrigeration Equipment Co.,Ltd

Place of Origin:

Zhejiang, China (Mainland)

Product Detail

Model No.: MFP-51KM-(Q)EE1

Certification: CE

Cooling/Heating: Cooling/Heating

Type: Central Air Conditioners

Capacity: Others

Brand Name: MECO

Chilled water 4 way cassette type fan coil units
water cassette air conditioner
air volume=200CFM-1200CFM)
drained by water pump height=290mm

Chilled water 4 way cassette type fan coil units

water cassette air conditioner
air volume=200CFM-1200CFM)
drained by water pump height=290mm
multi air flow
remote control

model(2 tube system)				MFP-34KM-(Q)EE1	MFP-51KM-(Q)EE1	MFP-68KM-(Q)EE1	MFP-85KM-(Q)EE2	MFP-102KM-(Q)EE2
air volume		H	m3/h	340	510	680	850	1020
		M		280	380	515	660	765
		L		180	260	340	430	530
static pressure			Pa	0	0	0	0	0
cooling capacity	TH	H	W	1800	2700	3600	4500	5400
	TH		BTU/h	6142	9212	12283	15354	18425
	SH		W	1311	1971	2700	3184	4196
	SH		BTU/h	4473	6725	9212	10864	14317
	TH	M	W	1500	2460	3000	3715	4423
	SH	M	W	994	1555	1995	2426	3041
	TH	L	W	1391	2057	2479	2921	3793
	SH	L	W	823	1200	1530	1826	2373
heating capacity	H		W	2700	4050	5400	6750	8100
	M		W	1949	2770	3938	4902	5694
	L		W	1297	1774	2779	3505	3876
noise	H	0Pa	dB(A)	37	39	41	43	45
power input	H	0Pa	W	37	52	62	76	96
waterflow volume			m3/h	0.31	0.46	0.62	0.77	0.93
water pressure dropping			kPa	11.8	11.8	22.4	27	29.6
dimension of pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water drain pipe			mm	￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	590590270			752752293
net dimension	panel		L×W×H mm	65065045			85085045
net weight	unit		kg	19	19	20	23	23
net weight	panel		kg	2.2			4.5
